Rumah > Produk > Drone Signal Jammer > Portable drone jamming gun with drone detection functions

Portable drone jamming gun with drone detection functions

Name: Portable drone jamming gun with drone detection functions
Brand: Zhejiang Zhongdeng Electronics Technology CO,LTD
SKU: ZD-GR010Q8DJ
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: Zhongdeng

Nomor model: ZD-GR010Q8DJ

Syarat Pembayaran & Pengiriman

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Rincian produk

Menyoroti:
                                                                                                                                                                                                                                                                                portable drone jammer with detection, drone jamming gun portable, anti-drone gun with detection


Frekuensi Deteksi:	300 MHz-6 GHz	Metode deteksi:	Analisis spektrum+ decoding sinyal
Rentang Deteksi:	0,5-3 km （mengacu pada lingkungan）	Band -band jamming:	400, 900MHz, 1,5GHz, 2,4GHz, 5,8GHz (dapat disesuaikan untuk menambahkan lebih banyak band);
Kekuatan jamming:	200W	Range Jamming::	2-3km（mengacu pada lingkungan）
Antena:	Antena Directional Gain Tinggi

Frekuensi Deteksi:	300 MHz-6 GHz
Metode deteksi:	Analisis spektrum+ decoding sinyal
Rentang Deteksi:	0,5-3 km （mengacu pada lingkungan）
Band -band jamming:	400, 900MHz, 1,5GHz, 2,4GHz, 5,8GHz (dapat disesuaikan untuk menambahkan lebih banyak band);
Kekuatan jamming:	200W
Range Jamming::	2-3km（mengacu pada lingkungan）
Antena:	Antena Directional Gain Tinggi

Deskripsi Produk

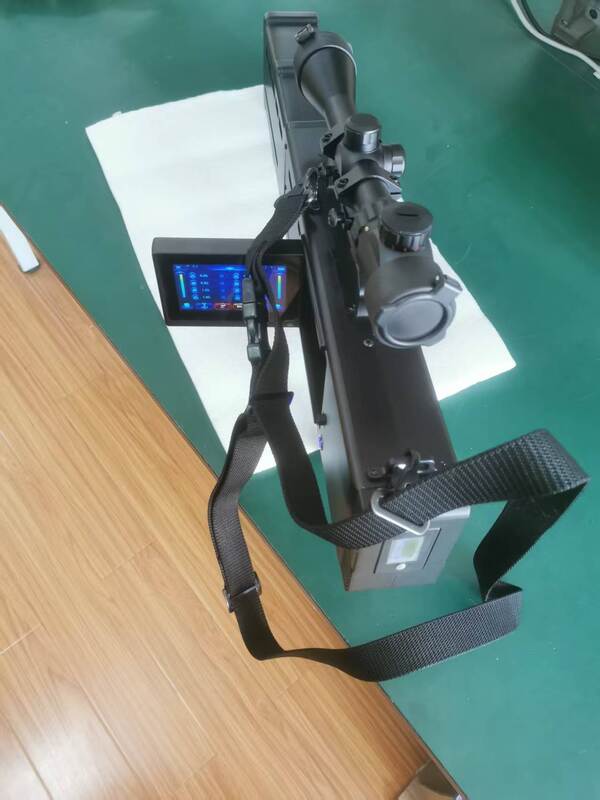

ZD-GR010Q8DJ Drone Detection and Jamming Gun

The ZD-GR010Q8DJ is an advanced, all-in-one drone detection and jamming gun that integrates detection, jamming, and positioning capabilities. This portable security solution utilizes cutting-edge technology to detect drone IDs, positions, and operator locations while transmitting radio frequency jamming signals to disrupt drone control, video transmission, and navigation systems.

This device effectively forces drones to land or return to their takeoff point, making it ideal for safeguarding critical locations and VIPs against unauthorized drone activities including remote-controlled bombings, drug trafficking, espionage, and other security threats.

Key Features

Detection and Jamming Integration

Combines detection, direction finding, positioning, and countermeasure functions in a single device
Immediate jamming activation upon target drone detection and locking

Advanced Positioning Capabilities

Real-time display of drone position (latitude, longitude, or block information), direction, and distance
Locates and displays real-time position, orientation, and distance of drone operators

Detection and Alert Systems

Direction finding with azimuth information presented through radar charts
Audible and visual alarms upon drone intrusion detection
Drone ID recognition displaying model, frequency (including real-time frequency hopping), and signal strength

Network and Data Management

Real-time jamming status display on main interface
Wireless data transmission of detection and related information to monitoring centers
Multi-device networking support for unified scheduling and control in large areas

User-Friendly Design

One-click language switching for display customization
Handheld gun body design, lightweight and portable
Detachable battery design for quick replacement and extended operation
Backpack design with hooks for strap connection
Dual power charging modes: direct power cord or separate battery charging
Battery level display on screen when device is powered on

Technical Specifications

Detection Frequencies	300MHz-6GHz
Detection Methods	Spectrum analysis + signal decoding
Detection Range	1.5-3km (environment-dependent)
Alarm Methods	Audible, visual, distance display, color-coded alarms
Jamming Bands	420-470MHz, 825-940MHz, 1170-1280MHz, 1450-1550MHz, 1550-1650MHz, 2400-2500MHz, 5100-5300MHz, 5700-5890MHz (customizable)
Jamming Power	Approximately 250W
Jamming Range	1500m
Power Supply	Built-in batteries
Jamming Modes	Force drone to return to takeoff position, force drone to land
Antenna	Built-in
Working Procedure	Automatic self-diagnosis upon startup, alarm upon drone detection, operator decision on jamming activation
Device Size	69.5cm × 26cm × 7cm
Device Weight	Approximately 4.5Kg (excluding battery)
Operation	Can be operated with one or two hands for information checking and jamming activation

The ZD-GR010Q8DJ Drone Detection and Jamming Gun is a versatile and powerful security tool designed for law enforcement, military, and critical infrastructure protection applications. Its comprehensive features and user-friendly design provide effective protection against unauthorized drone activities.
