50km GNSS jammer special designed to defense The Poor man cruise missile

Name: 50km GNSS jammer special designed to defense The Poor man cruise missile
Brand: Zhejiang Zhongdeng Electronics Technology CO,LTD
SKU: ZD-GR250GN
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: Zhongdeng

Nomor model: ZD-GR250GN

Syarat Pembayaran & Pengiriman

Kuantitas min Order: Untuk didiskusikan

Harga: to be discussed

Waktu pengiriman: 2-3 minggu

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Rincian produk

Menyoroti:
                                                                                                                                                                                                                50km GNSS military jammer, cruise missile defense jammer, long-range GNSS signal jammer


Frekuensi:	GNSS	Rentang Jamming:	50km
Kekuatan jamming:	250W	Waktu Kerja:	24 jam terus menerus bekerja
Catu daya:	220VAC atau 24VDC (dipasang di kendaraan)

Frekuensi:	GNSS
Rentang Jamming:	50km
Kekuatan jamming:	250W
Waktu Kerja:	24 jam terus menerus bekerja
Catu daya:	220VAC atau 24VDC (dipasang di kendaraan)

Deskripsi Produk

50km GNSS Jammer for Defense Against Poor Man's Cruise Missile

System Overview

50km 10-band GNSS jammer system designed to interfere with drones using satellite navigation systems, forcing them to move away from their intended destinations.

Product Description

This advanced GNSS jammer system targets all major satellite navigation signals. Utilizing sophisticated jamming technology, it generates high-efficiency digital jamming signals to disrupt satellite navigation, preventing unauthorized devices from obtaining GNSS location information.

The system offers versatile deployment options including stationary installation and vehicle-mounted applications. Its compact design facilitates easy integration and deployment, available as standard indoor rack-mounted units or outdoor units housed in aluminum cases.

Primary Application: Designed for deployment in sensitive areas where drone intrusion via GNSS navigation signals must be prevented, specifically targeting threats such as the "poor man's cruise missile."

Key Features

Compact design for easy stationary installation
Four directional antennas providing omnidirectional jamming coverage
Large surface heat sink with integrated cooling fans
Single-switch control technology for individual frequency band management
Dual power supply options: AC220V or DC24-28V (customizable)
IP65 weatherproof rating
External power supply for enhanced anti-jamming capability and superior heat dissipation

Technical Specifications

Parameter	Specification
Jamming Bands	GPS L1, L2, L5; GLONASS L1, L2; GALILEO E1, E5a, E5b; BDS (multiple frequencies)
Total Jamming Power	250W
Jamming Range	50km
Antenna Gain	12-15dBi
System Power Consumption	1200W
Main Unit Dimensions	52 × 53 × 47 cm
Main Unit Weight	49kg
Power Supply	220VAC or 24VDC (vehicle mounted)
Continuous Operation	24 hours
Operating Temperature	-40℃ to +55℃

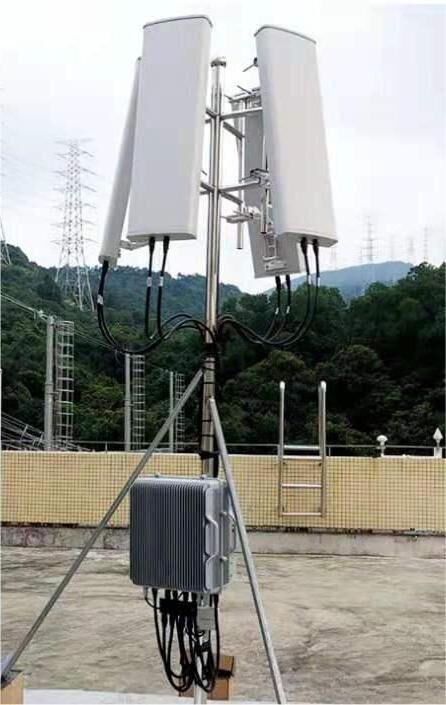

Main Components

1 Main Unit
1 Power Supply Box
4 Directional Antennas
1 Tripod
1 Power Cable for 220VAC
